LensCheck™ System and Accessories
Explore the most diverse and flexible array of lens measurements available when you test with LensCheck™ Systems and Accessories.
Explore the most diverse and flexible array of lens measurements available when you test with LensCheck™ Systems and Accessories.

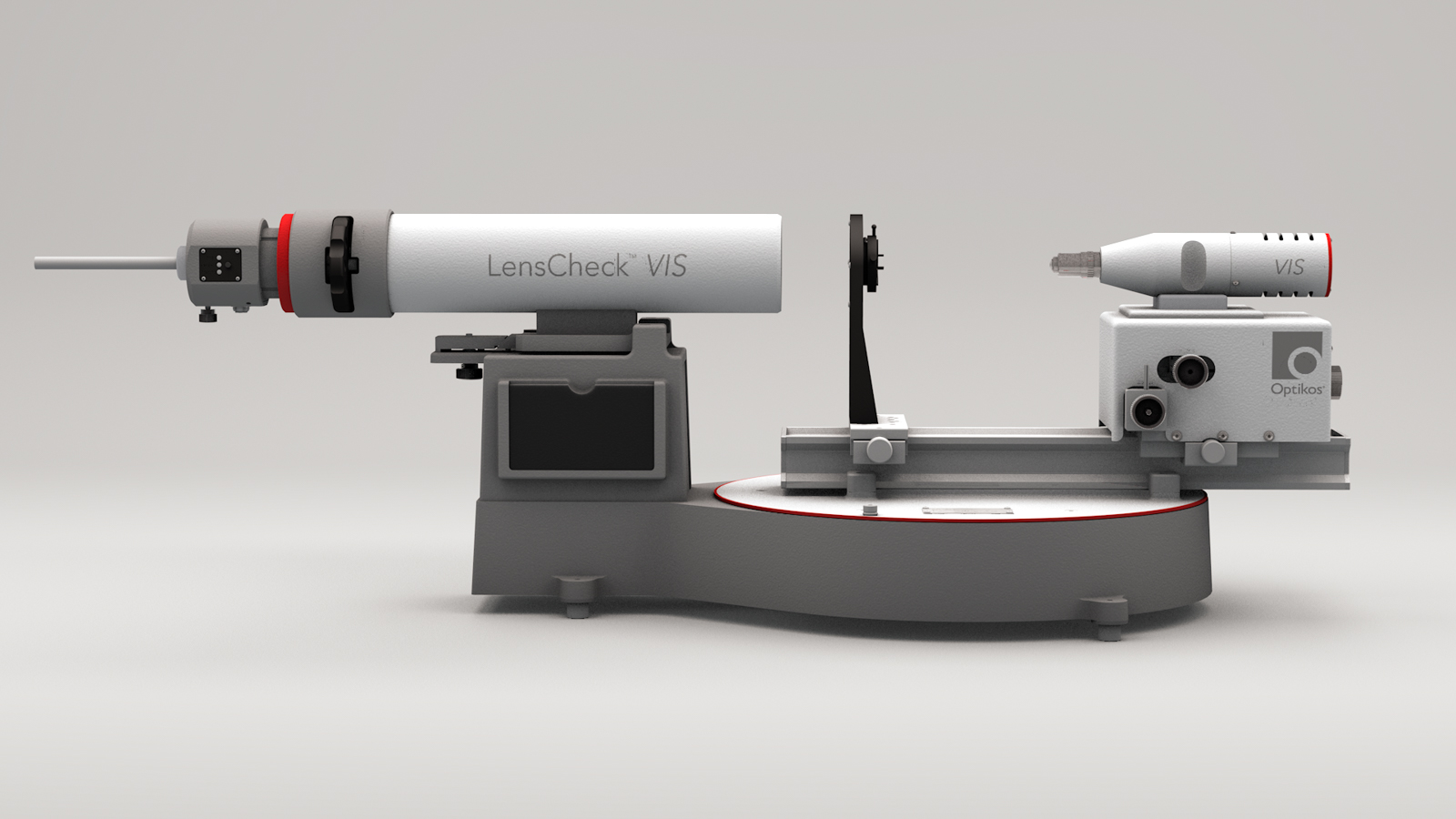

The LensCheck™ Instrument is a compact, efficient, and easy-to-use quality control tool for visible through long-wave optics, and a cost-effective solution for your production and prototype qualification needs. Qualify lenses quickly and reliably and ensure that your products or assemblies meet quality standards.
LensCheck Systems can be tailored to:
- Measure a range of wavelengths (VIS/NIR, SWIR or LWIR)
- Switch among three tailored user modes (Production, Laboratory and Engineering)
- Configure test routines, achieve faster measurement times, and select from the most comprehensive set of lens measurements available

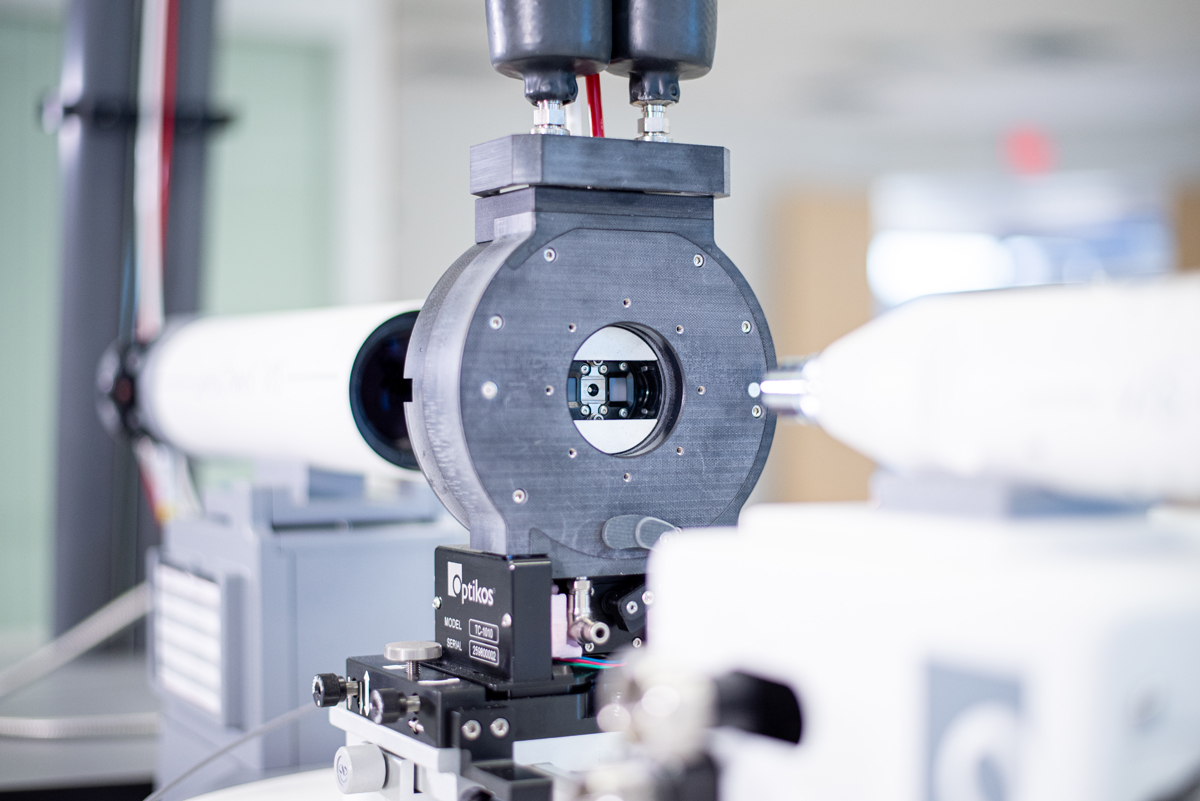

Test lenses over temperature with the LensCheck Thermal Module
What do our customers like about a LensCheck solution?
Just ask Ryan Brunk, Operations Manager at Rochester Precision Optics:
"We rely on numerous pieces of Optikos equipment every day to make image quality measurements for the products we make. We are confident in the results we obtain from these instruments for both visible and infrared optical assemblies."
LensCheck systems and accessories are flexible on so many levels.
You can customize your LensCheck with optional accessories as your requirements grow:
| Lens Image Challenge | Measurement / Parameter | LensCheck Accessory |
|---|---|---|
| Effects of stray light | • Veiling Glare Index | • Stray Light Kit |

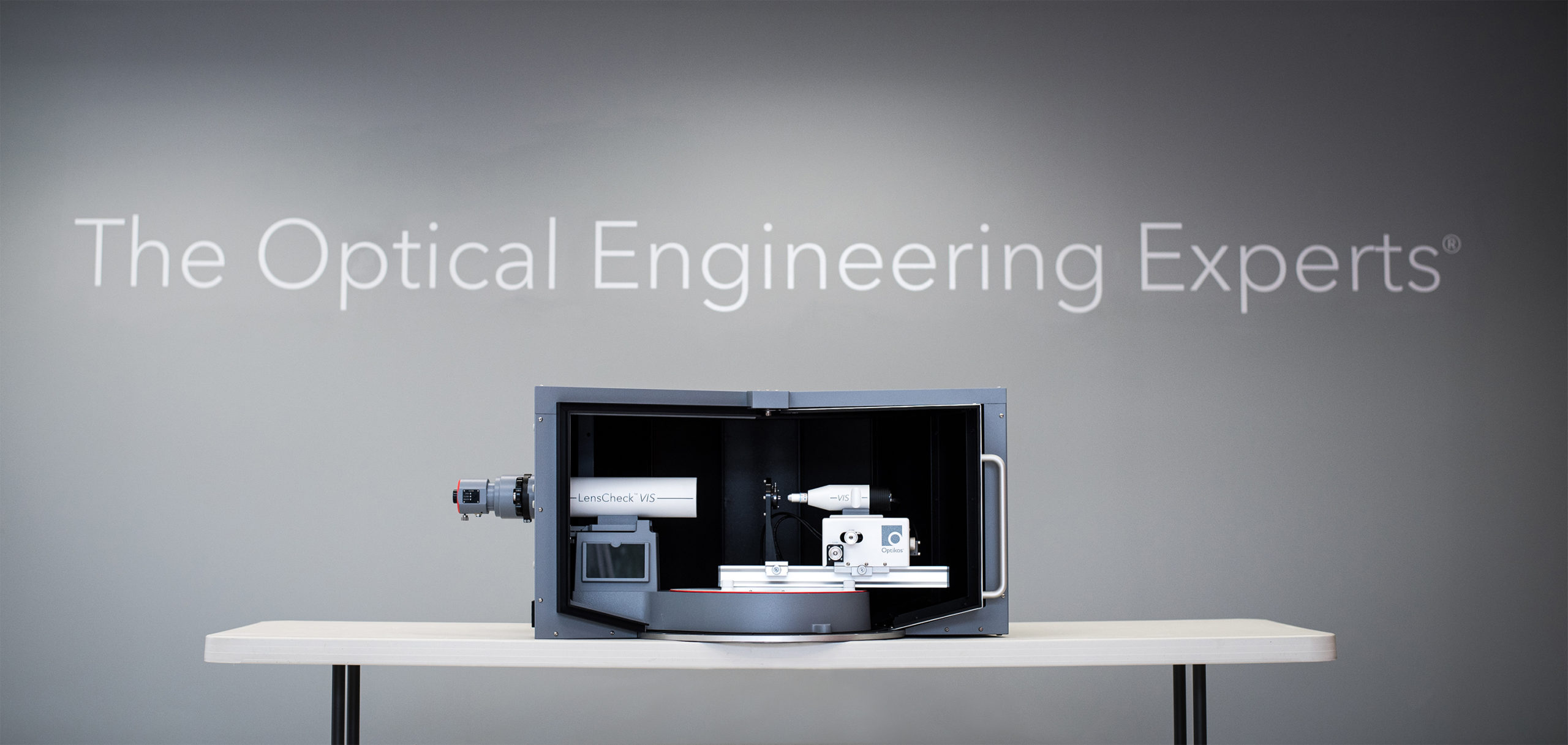

| Effects of Stray Light | • Glare Spread Function (GSF) | • OpTest® Software GSF Measurement with Kit and/or LensCheck Enclosure |
| Lens performance under extreme temperatures | • Metrology Transfer Function (MTF) • Temperature variation in Flange Focal Length (FFL) | • Thermal Module (Patent Pending) |
| Objects are closer than the hyperfocal distance | • MTF and other properties | • Finite Conjugate System |
| Finite conjugate with smaller field of view | • MTF and other properties | • Small Format Finite Conjugate System |
| Flexibility to make finite and infinite conjugate measurements | • MTF and other properties | • Adjustable Conjugate System |
| Wide spectral ranges | • MTF and other properties | • Reflective Collimator |
| Transmission | • Lens total transmission | • Transmission Kit |
| Issues in lens assembly | • Centration/bore sight | • Rotary Lens Mount |
Learn more about LensCheck system and options
