Testing For All Applications
IQ Lab™ Services
Optikos IQ Lab™ Services offer top-tier, fast, and reliable camera and lens testing for all size projects and requirements. Our team of expert staff relies on industry knowledge and Optikos world-class metrology products to provide informative and accurate results on underperforming cameras and lenses, or to qualify the specifications of camera and lens systems—and do so with exceptional turnaround time.
Every Problem Has a Solution
Problems We Solve
Lenses or cameras have blurred focus or are underperforming in sharpness
Lenses or cameras are under performing based on customer requirements
3rd party qualification is required for lenses or cameras from a 3rd party supplier
They are prototyping a lens model but need to evaluate assembly or design
A bad lot of lenses were received and the issue needs to be diagnosed
They have already utilized the Optikos Engineering Services Design Team and require engineering testing support at the same caliber
A patent infringement investigation requires measuring a lens or camera
Camera components must be tested
Customers need to reverse engineer an off-the-shelf lens design
In-depth performance characterization is required for off-the-shelf camera lenses and modules
Types of Solutions
Services by Optikos
De-risk system designs, verify specifications, and accelerate confident decisions from development through production.

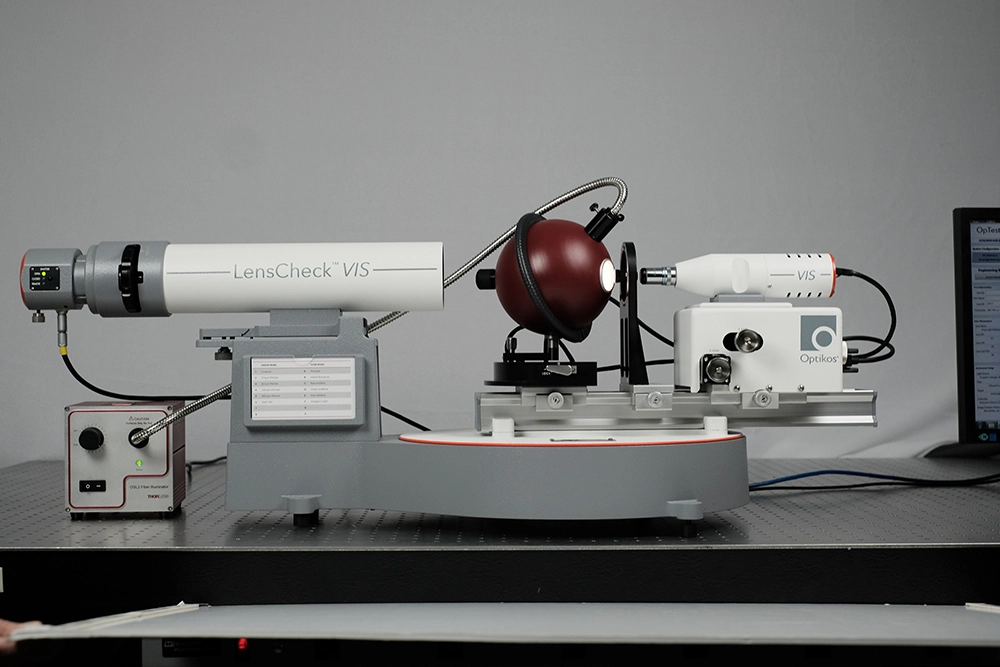

Infinite or Finite Conjugate Testing
Stray Light Testing
Optical Inspection
Testing Over Temperature
Measurements We Offer
Image Quality Measurements
- Paraxial EFL
- MTF On-/Off- Axis
- Through Focus MTF On-/Off- Axis
- Field Curvature
- Field Tilt
- Distortion
- Chief Ray Angle
- Encircled Energy
- Relative Illumination
- Magnification

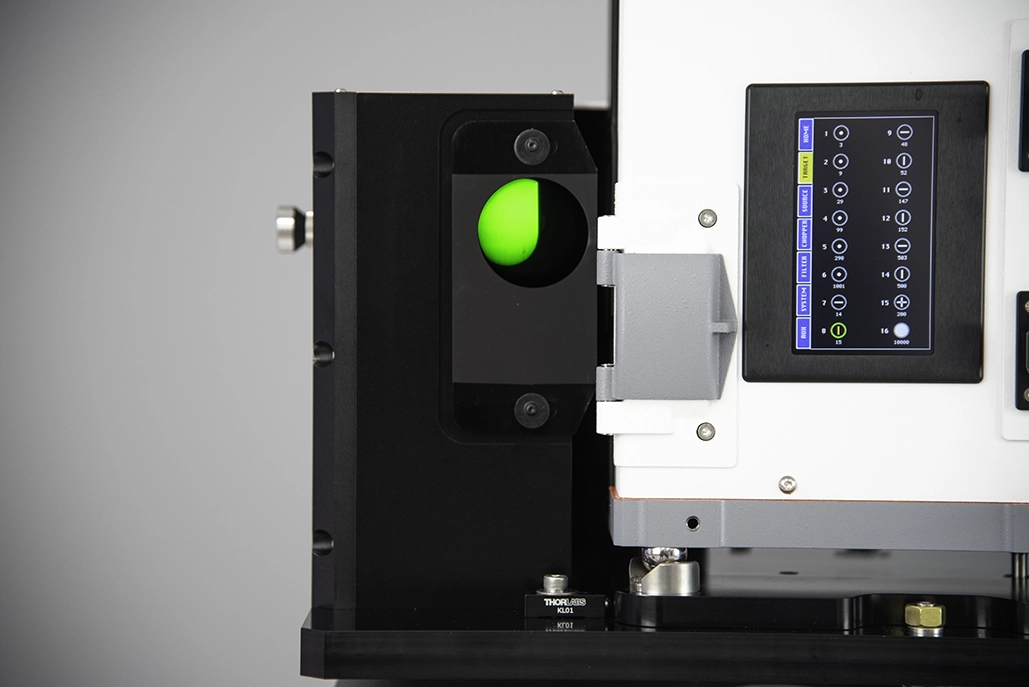

Optical Parameter Measurements
- Back/Flange Focal Length
- Entrance Pupil Diameter
- Field of View
- Axial Color
- Lateral Color
- Line of Sight

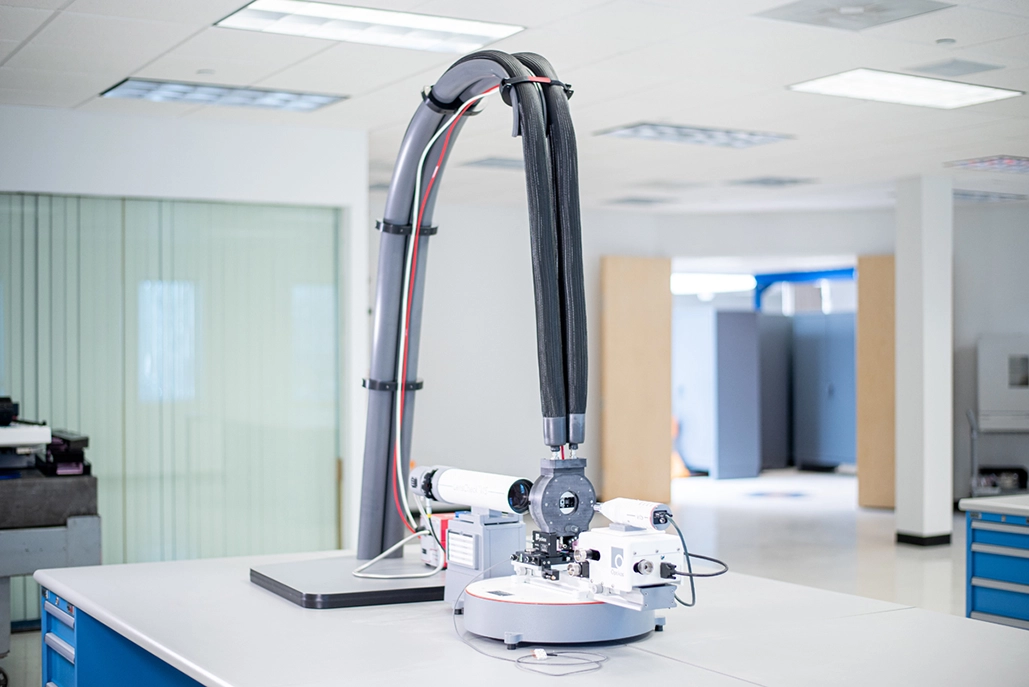

Measurements Over Temperature
- Flange Focal Length
- MTF On-/Off- Axis
- Through Focus MTF On-/Off- Axis
- Field Curvature
- Field Tilt
- Distortion
Light Measurements
- Spectral Transmission
- Total Power Transmission
- Veiling Glare Index
- Glare Spread Function
Optical Inspection
- Visual Inspection
- Diameter
- Center Thickness
- Radius of Curvature
- Irregularity/Power
- Transmitted Wavefront
- Edge Thickness Difference
Discover More

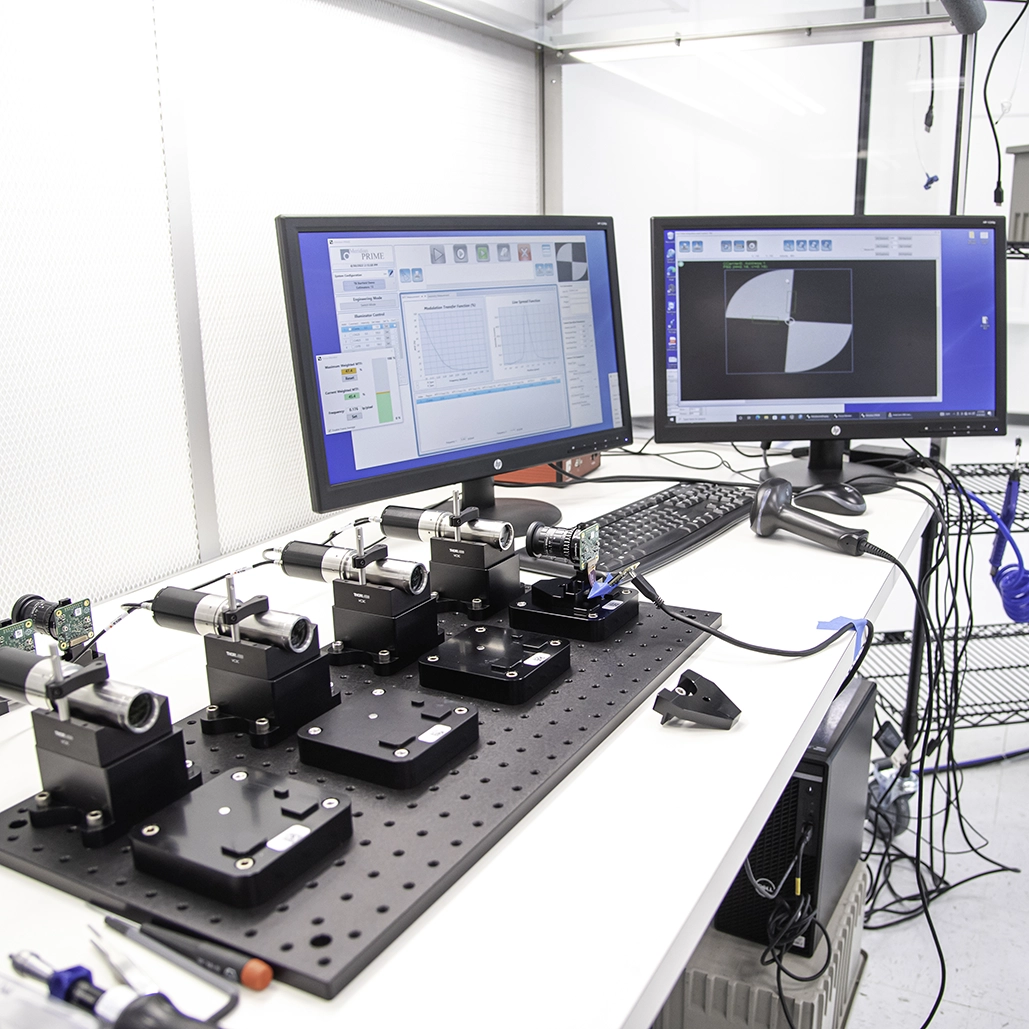

What is MTF?
With the growing role played by optical devices in measurement, communication, and photonics, there is a clear need for characterizing optical components. A basic and useful parameter, especially for imaging systems, is the Modulation Transfer Function, or MTF.
Over the past few decades technological advances, including the laser interferometer, high-speed imaging devices (CCD and CMOS Cameras), and advanced computer algorithms have revolutionized the measurement and calculation of MTF. This has made what was once a tedious and involved process into virtually an instantaneous measurement.
Results on your Timeline
IQ Lab™ Services Project Timeline
Let's Get to Work
Testing Services Questionnaire
If you would like us to contact you about testing, please leave your contact information or provide us with some details about your optical system in our questionnaire.
